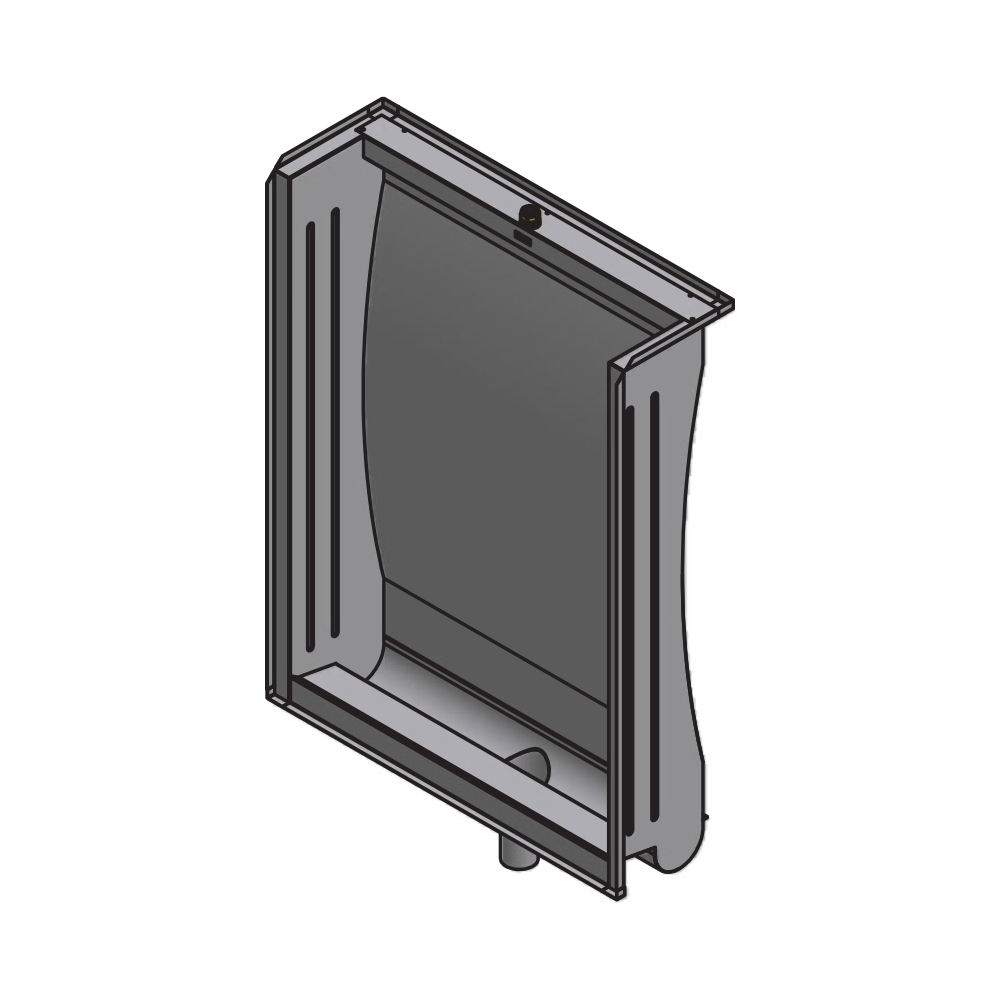

Urinals: CB101: Flush Valve (1 Inlet / Centre Outlet)

Franke Model CB101 (flush valve) curved back urinal length…mm (please specify). Unit to be manufactured from Grade 304 (18/10) Stainless Steel. The urinal to be supplied with a concealed sparge pipe and a 22mm inlet with chrome plated conex fitting for connecting to high level cistern or urinal flush valve (elsewhere measured). Outlet to be situated on the left, or right, or centre (please specify) of the urinal with a 102mm removable domical grating and to include a built-in threaded plate. Urinal to be supplied with a tiling key to the sides and rear walls. The back to be fully sound deadened with vermin proof bitumastic material.

FEATURES:

• Manufactured from 304(18/10) Stainless Steel
• Back of urinal fully sound deadened
• Sides and top complete with tiling key.
• For use with flush valve or high-level cistern

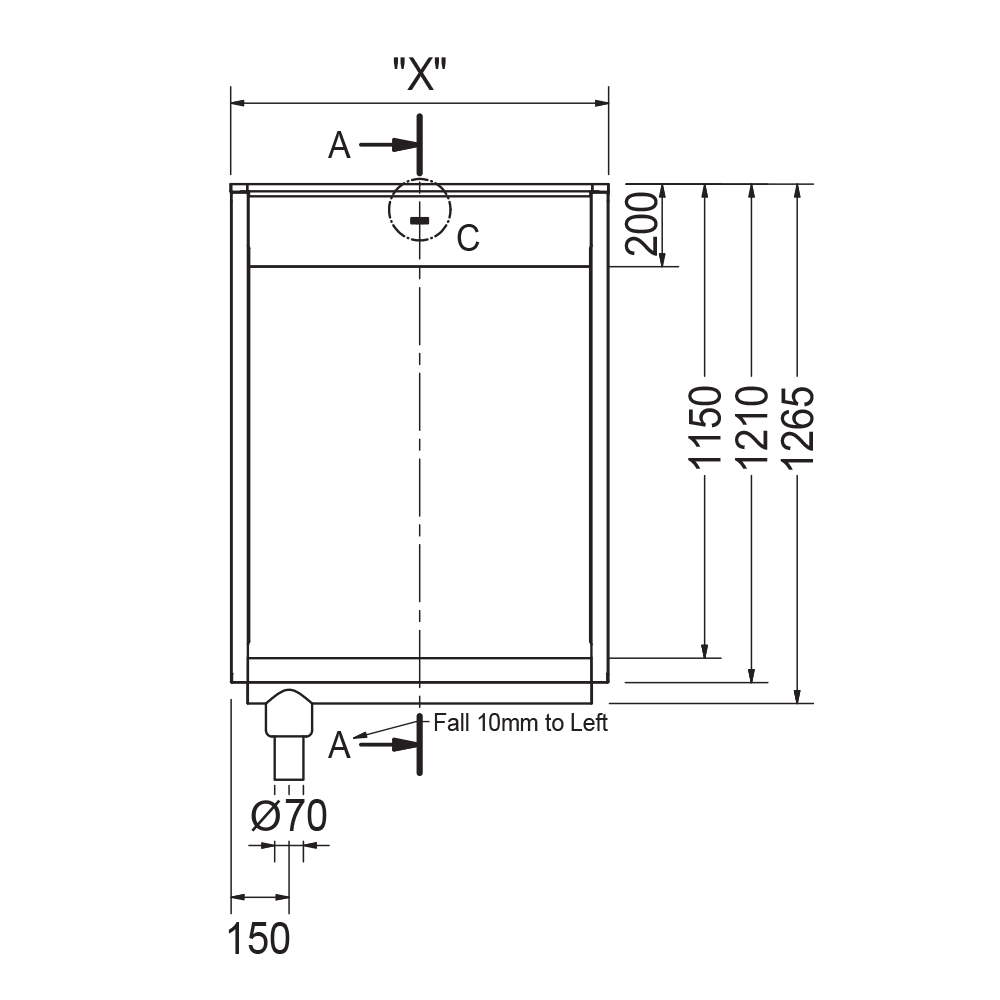

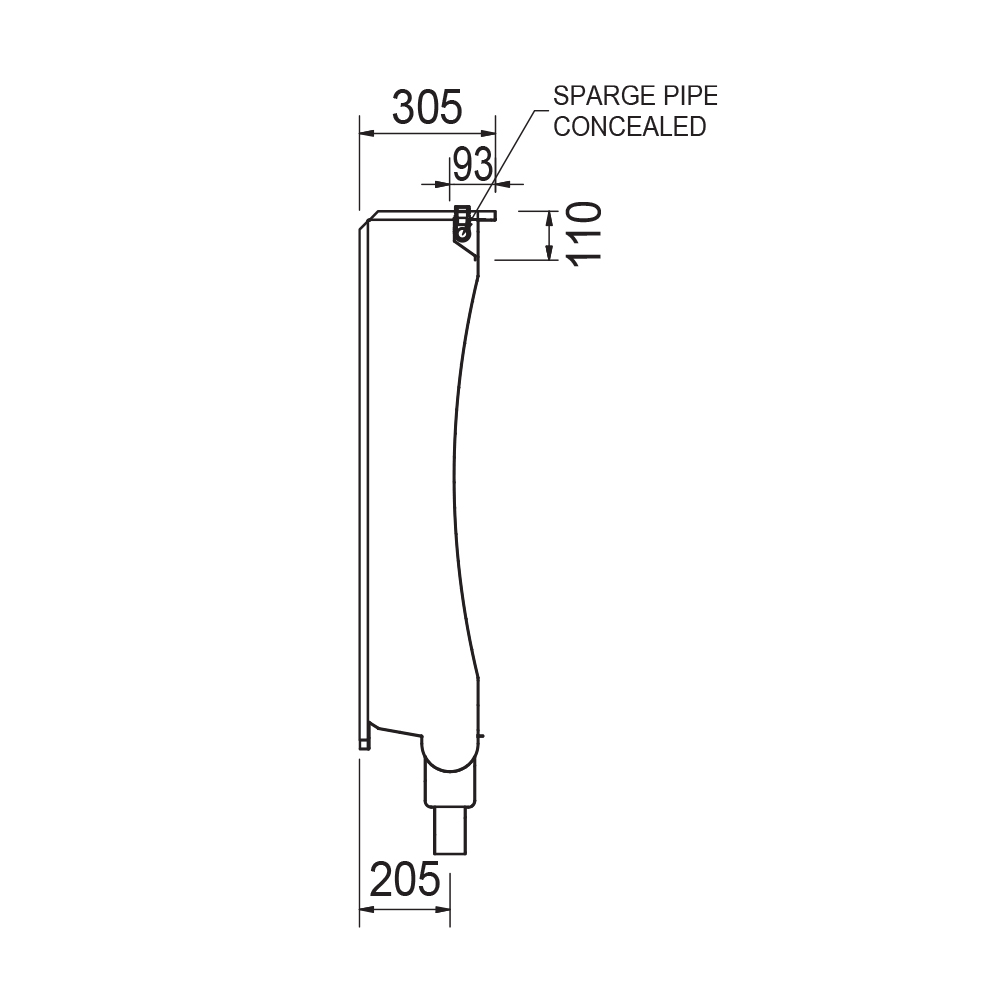

• Concealed sparge pipe
• Supplied with a 70mm outlet.
• Recessed Stainless Steel domical grating.
• Free standing ends where end plate is exposed.
• Sloped drip ledge for hygiene
• Standards lengths of 610 - 2440mm

Non-Standard Wall & Floor Urinals (Available on request)

“L” Shaped Urinal:

Franke Model CB101 or CB102 “L” Shaped curve back urinal length (...x...) (Please specify) manufactured from Grade 304 (18/10) Stainless Steel. Unit will be supplied with one welded corner an easy assembly joint with sealing strip (as recommended).

“U” Shaped Urinal:

Franke Model CB101 or CB102 “U” Shaped curve back urinal length (... x... x ...) (please specify) manufactured from Grade 304 (18/10) Stainless.

Steel. Unit will be supplied with two welded corners an easy assembly.

joints with sealing strip (as recommended).

Welded Corner:

All the right-angled corners on “L” and “U” shaped urinals will be manufactured with welded joints to ensure the fall in the trough is maintained and the drainage to the outlet is accurate.

Easy Assembly Joint:

For ease of installation and transportation on lengths over 3000mm and for “L” and “U” shaped urinals. Urinals are manufactured in two sections and bolted together on site with an easy assembly joint. This joint will be sealed with a neoprene rubber sealing strip supplied with the urinal.

OTHER MODELS:

• CB101 (1 Inlet / Centre Outlet) 610mm 2540003
• CB101 (1 Inlet / Centre Outlet) 915mm 2540005
• CB101 (1 Inlet / Centre Outlet) 1220mm 2540007
• CB101 (1 Inlet / Centre Outlet) 1525mm 2540009
• CB101 (1 Inlet / Right Hand Outlet) 1830mm 2540011-001
• CB101 (1 Inlet / Left Hand Outlet) 1830mm 2540011-002
• CB101 (1 Inlet / Centre Outlet) 1830mm 2540011
• CB101 (2 Inlet / Left Hand Outlet) 2135mm 2540013-001
• CB101 (2 Inlet / Right Hand Outlet) 2135mm 2540013-002
• CB101 (2 Inlet / Centre Outlet) 2135mm 2540013
• CB101 (2 Inlet / Right Hand Outlet) 2440mm 2540028-001
• CB101 (2 Inlet / Left Hand Outlet) 2440mm 2540028-002
• CB101 (2 Inlet / Centre Outlet) 2440mm 2540028

* Non-Standard sizes available on request Fittings not included
