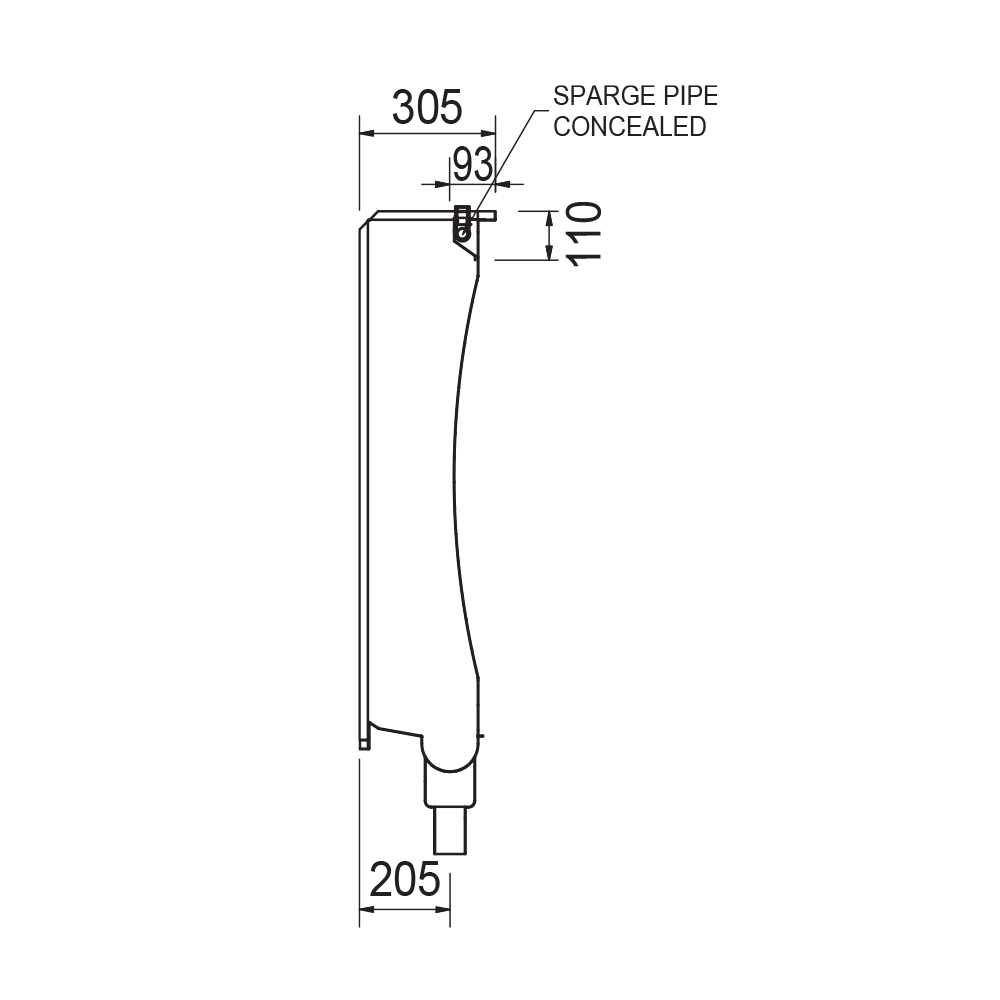

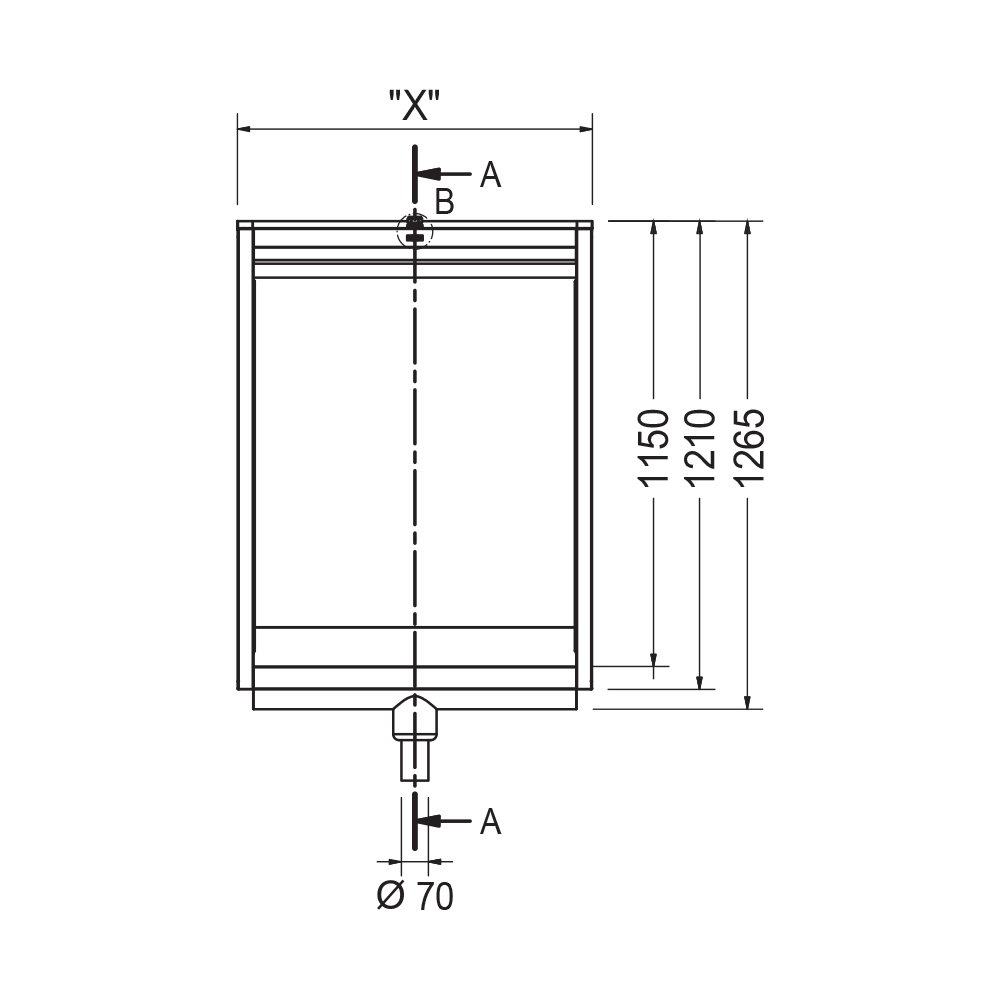

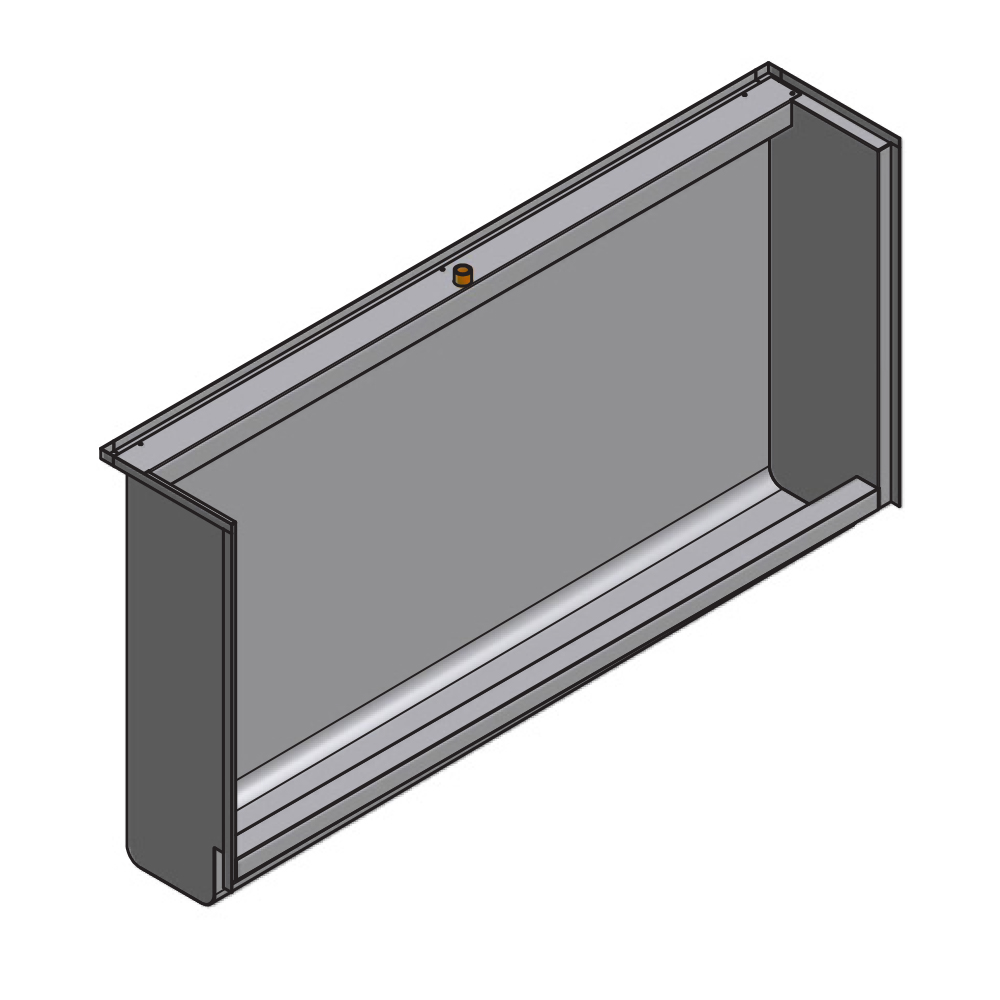

Franke Model TU101 flat back wall mounted Trough Urinal, length … mm (please specify). Unit to be manufactured from Grade 304 (18/10) Stainless Steel, 0,9mm gauge. Urinal to be supplied with a concealed sparge pipe and a 22mm inlet with chrome plated conex fitting for connecting to the high-level cistern or urinal flush valve (elsewhere measured). Outlet to be situated on the left or right... (please specify) of the urinal with a recess for 40mm chrome plated waste outlet (to be supplied). Urinal to include a tiling key to sides and rear walls. The back to be fully sound deadened with vermin proof bitumastic material.

FEATURES:

• Manufactured from Grade 304 (18/10) Stainless Steel
• Back of urinal fully sound deadened
• Sides and top complete with tiling key.
• For use with flush valve or high-level cistern
• Concealed sparge pipe
• Free standing ends where end plate is exposed.
• Left or right outlets (provision for 40mm waste outlet)
• Standard lengths of 610 to 1830mm

• TU101 (1 Inlet / Left Hand Outlet) 610mm 2540061-001
• TU101 (1 Inlet / Right Hand Outlet) 610mm 2540061
• TU101 (1 Inlet / Left Hand Outlet) 915mm 2540062-001
• TU101 (1 Inlet / Right Hand Outlet) 915mm 2540062
• TU101 (1 Inlet / Left Hand Outlet) 1220mm 2540063-001
• TU101 (1 Inlet / Right Hand Outlet) 1220mm 2540063
• TU101 (1 Inlet / Left Hand Outlet) 1525mm 2540064-001
• TU101 (1 Inlet / Right Hand Outlet) 1525mm 2540064
• TU101 (1 Inlet / Left Hand Outlet) 1830mm 2540065-001
• TU101 (1 Inlet / Right Hand Outlet) 1830mm 2540065-001

* Non Standard sizes available on request

Fittings not included
