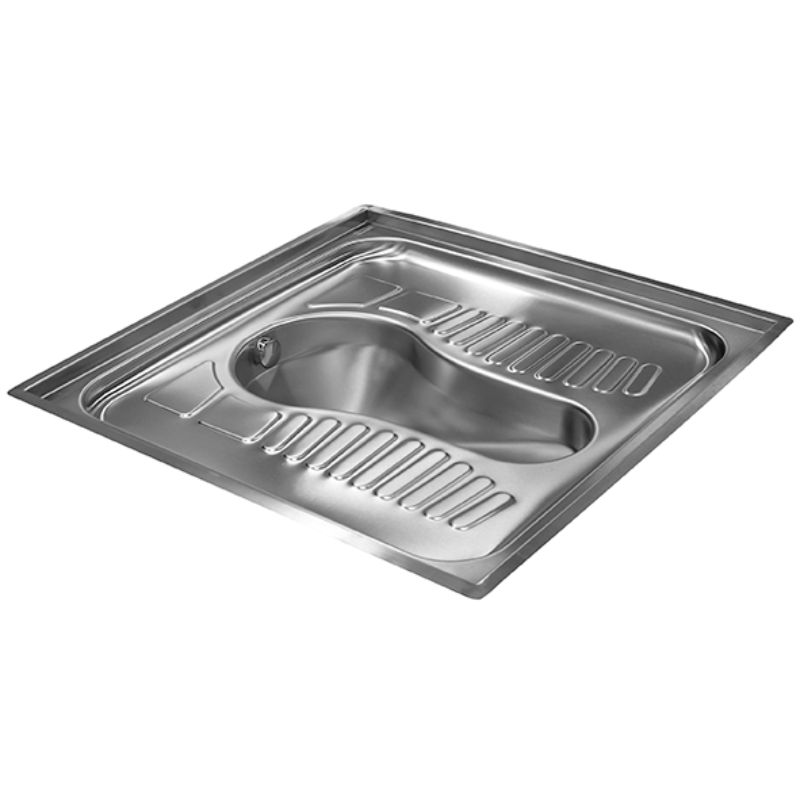

Franke Model 700x700mm OR 740x740mm... (Please specify) Squat Pan. Unit to be manufactured from Grade 304 (18/10) Stainless Steel ,1,2 mm gauge with the foot plate and flush bowl pressed into one piece. The foot plate tray to be pressed in raised pattern on both sides and in front of the flush bowl. The unit to be fitted with a rear entry flushing spreader that will self-seal with 38mm or 41mm flushing pipe (please specify), waste outlet with a 110mm external diameter, suitable for fitting to a standard 110mm PVC or cast-iron waste connector.

FEATURES:

• Grade 304 (18/10) Stainless Steel, 1.2mm gauge
• Hygienic pan cannot chip or crack.
• Designed for the highest level of anti-vandal resistance.
• Heavy duty construction external surfaces 1.2mm gauge
• Fully pressed design with raised tread plates
• Concealed back entry flush pipe inlet suitable for surface mounted or concealed flush valves, low or high level cisterns
• Supplied with flushing spreader.
• Flushes with 9 litres Low Level Cistern

Optional Extras:

• Also available with High level Stainless Steel cistern with Supa Flush
• Valve and 41mm diameter Stainless Steel flush pipe.

MODEL OPTIONS:

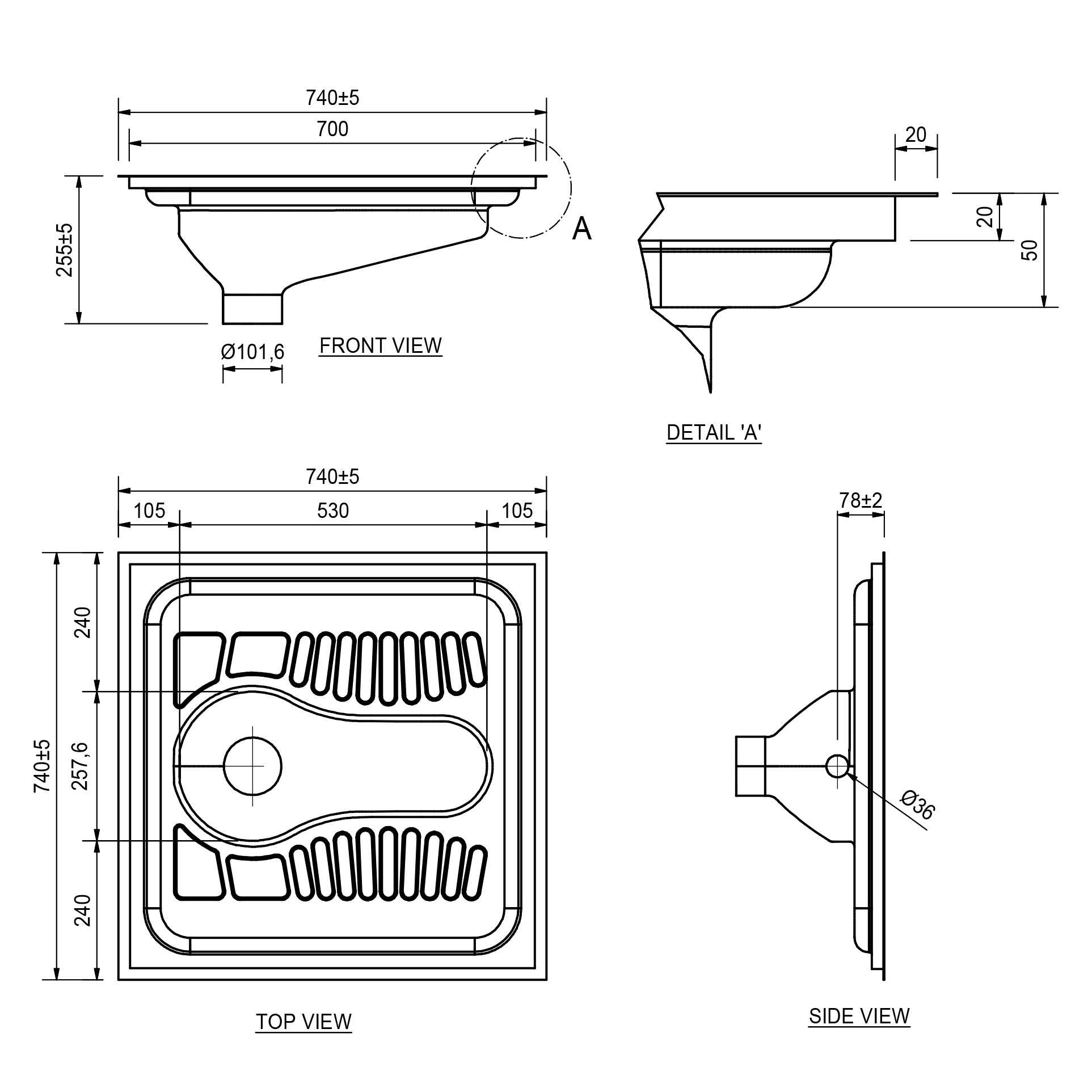

• Squat Pan with 20 mm turn up all round 700x700 - 2540077
• Squat Pan with 20 mm turn up and flange all round 740x740 - 2540076
