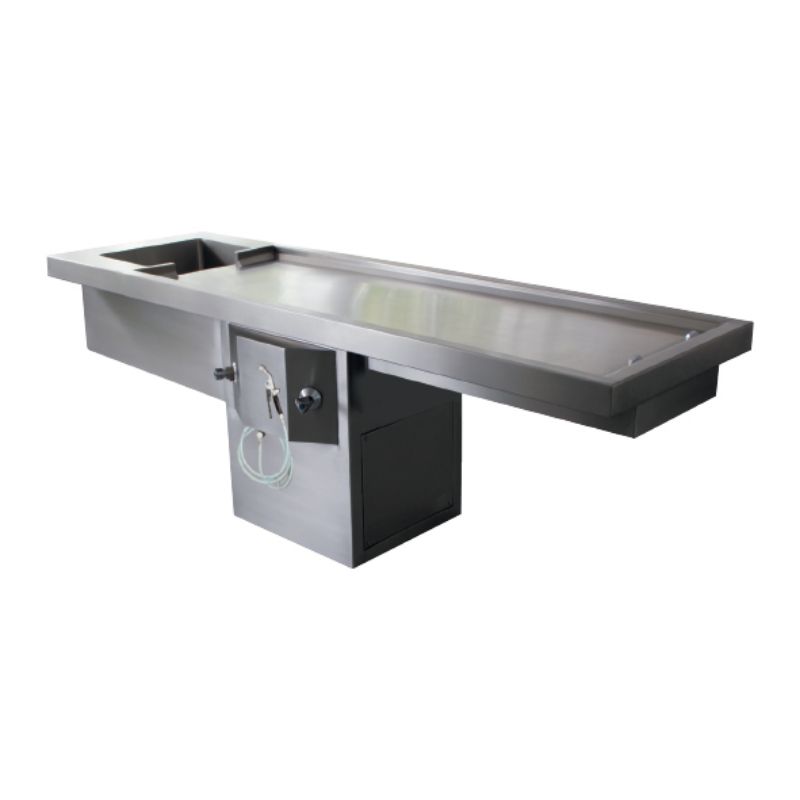

SPECIFICATION MODEL KZ:

Franke Model KZ Autopsy Table 2500x770x850 mm to be manufactured from grade 316 L, gauge 2.0 mm stainless steel sloping towards bowl and fitted

with 2 x diamond spreaders plumbed to cold water supply. Both spreaders to be plumbed to 15mm copper tube connected to stop cock. The entire

worktop and area below bowl is to be equipped with removable inspection panels to conceal plumbing and all joints shall feature a return bend to

prevent water creep. Bowl 350x500x200 mm deep to be manufactured from grade 316 L, gauge 1.6 mm integrated stainless steel flush pipe of 110 mm Ø for connection to PVC S-trap. Bowl to be equipped with removable catch grid fitted to the edge of bowl using two fixing lugs fuse welded to bowl. The bowl shall be equipped with a removable perforated stainless-steel overflow with handle and diamond spreader, stop cock and 1 x 3 Meter flexible hose connected to hand-controlled demand trigger spray. Pedestal to be manufactured with a reinforced base for securing to plinth using 4 off 10mm Ø stainless steel anchor bolts.

FEATURES:

- Manufactured in grade 316 L laboratory stainless steel

- Heavy duty construction with 2 mm gauge top and 1.6mm panels

- Heavy duty pedestal for fixing to plinth

- Removable panels for inspection and maintenance

- Ergonomic design to facilitate free operator movement

- Removable grid overflow

- Integral rinsing system with cold water control and flexible 3m flexible hose and spray nozzle

- Integrated 110mm Ø stainless steel waste outlet for connection to PVC S-trap

- Provision for electrical plug point connection

- Sloped corners and edges to facilitate easier cleaning

- Removable catch grid fitted to specially designed fixing lugs to edge of bowl

OPTIONAL ACCESSORIES:

Electrical Plug Point: The units shall be fitted with a 3-point electrical water proof plug adjacent to plumbing fittings.
