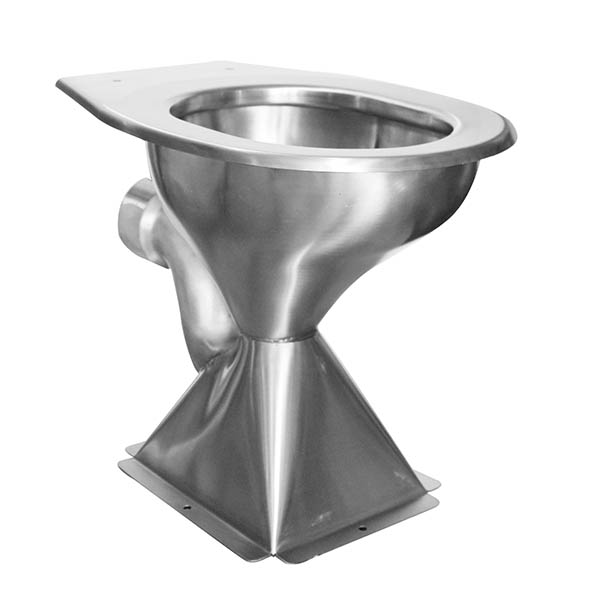

Franke Model HCL Pedestal WC Pan, unit to be manufactured from Grade 304 (18/10) Stainless Steel, 1,2mm gauge. Unit to be manufactured with a pressed flushing rim and integral “P” Trap with a 102mm outlet pipe, and a 60mm back entry inlet pipe to suit a rubber flush inlet sealing bung. The pan to be fitted with a Stainless-Steel base which has flanges with 6mm holes for fixing the pan to the floor (bolts elsewhere measured).

FEATURES:

• Grade 304 (18/10) Stainless Steel, 1.2mm gauge
• Hygienic and vandal resistant
• Pressed components to ensure consistent quality and performance.
• 6 litres flushing
• Optional provision for seat or wooden slats

Optional Flushing Systems:

• Surface mounted or concealed Flush Valve
• High-level Stainless-Steel cistern with Supa Flush Valve and a 38mm diameter Stainless Steel flush pipe.
• Low-level Stainless-Steel cistern with Supa Flush Valve and PVC flush pipe.

MODEL OPTIONS:

• HCL Pan with Slats 2540154-001
• HCL Pan without Slats 2540154

Optional Toilet Seat available (Please specify)

If required, seat must be specified with WC Pan

WATER CONSERVATION AND QUALITY ASSURANCE

Complies with SABS and LGA DIN EN
