SPECIFICATION MODEL EL
WITH FLUSH VALVE OPTION

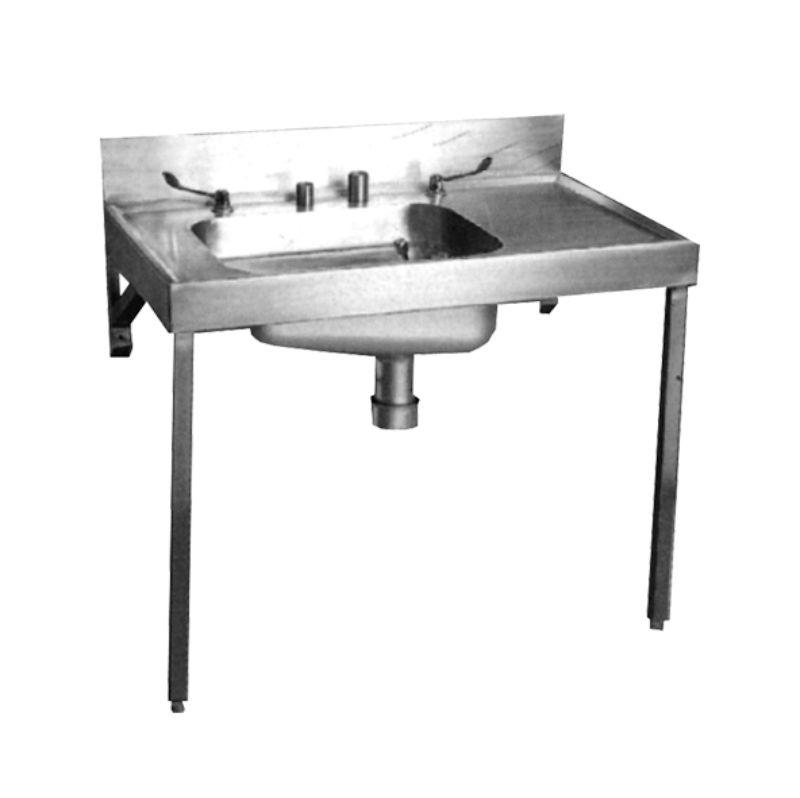

Franke Model EL Sluice Sink manufactured from grade 304 (18/10 stainless steel 1.6mm (draining board) and 1,2mm thick (bowls). Unit with a 150mm high integral splash back to the rear and 15mm deep hospital bead 100mm apron to front and sides. The unit is fitted with a pressed seamless bowls, the sluice bowl factory fitted with a Cobra FMI.00 flush valve, 35mm water supply through 50mm sleeve on unit, 15mm bedpan spray nozzle, 15mm bottle spray nozzle (both nozzles activated by two 15mm quarter turn elbow action valves).
WITH HIGH LEVEL CISTERN OPTION
Franke Model EL Sluice Sink manufactured from grade 304 (18/10 stainless steel 1.6mm (draining board) and 1,2mm thick (bowls). Unit with a 150mm high integral splash back to the rear and 15mm deep hospital bead 100mm apron to front and sides. The unit is fitted with a pressed seamless bowls sluice bowl having an integral flushing rim and a 38mm diameter inlet pipe for the flush valve and the waste outlet is 110mm. The underside sprayed with vermin proof bitumastic sound deadening and has a galvanised mild steel backing sheet. Unit supplied complete with 11 litres stainless-steel high-level cistern fitted with Supa Flush Valve and pull chain, 41mm diameter stainless steel flush pipe and 41mm chrome plated coupling which is reduced on one end to fit the 38mm connection on the unit.
FEATURES:
- Grade 304 (18/10) Stainless Steel 1.6mm gauge on drainer and 1,2mm gauge on bowl
- Hygienic and durable
- Pressed seamless bowl designed for the highest level of hygiene and durability
- Unit is pre-plumbed at factory and can be supplied complete with fittings
- Sluice bowl with built in Flush rim mechanism with 110mm outlet
- Alternative fixing methods

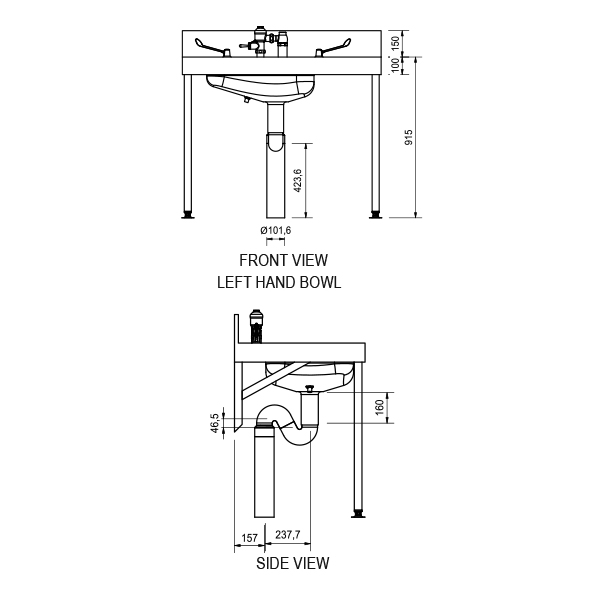

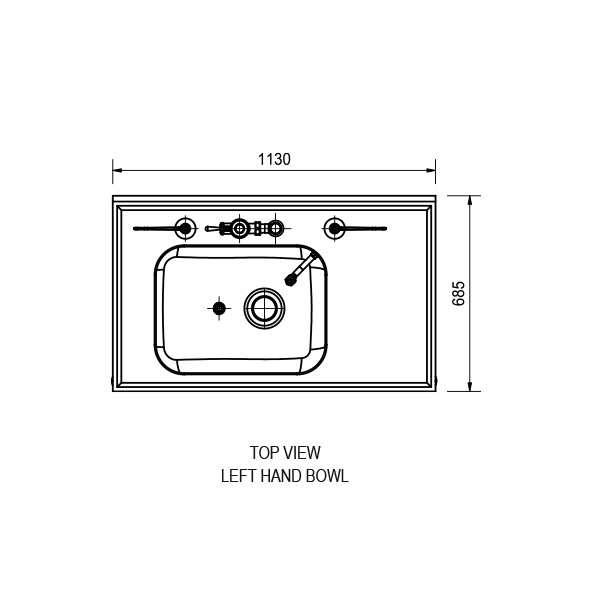

2630011 - EL 1130x685 mm Left Hand Flush Valve
2630012 - EL 1130x685 mm Right Hand Flush Valve
2630013 - EL 1130x685 mm Right-Hand High-Level Cistern
2630014 - EL 1130x685 mm Left-Hand High-Level Cistern
OPTIONAL ACCESSORIES:
Stainless Steel “P” Trap - On Request
Removable Grid - 2120130
