SPECIFICATION MODEL EC

WITH FLUSH VALVE OPTION

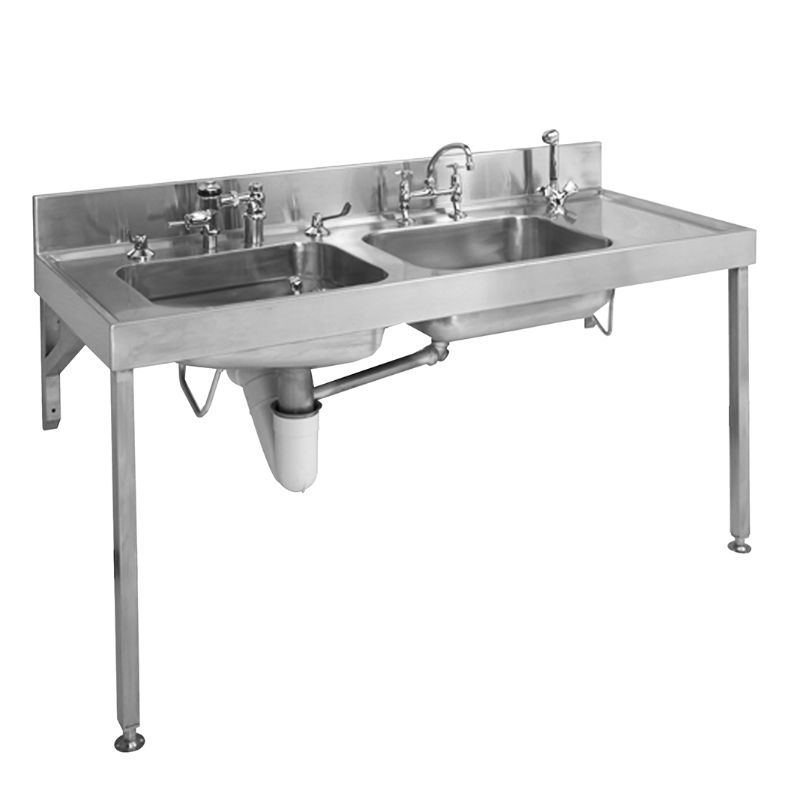

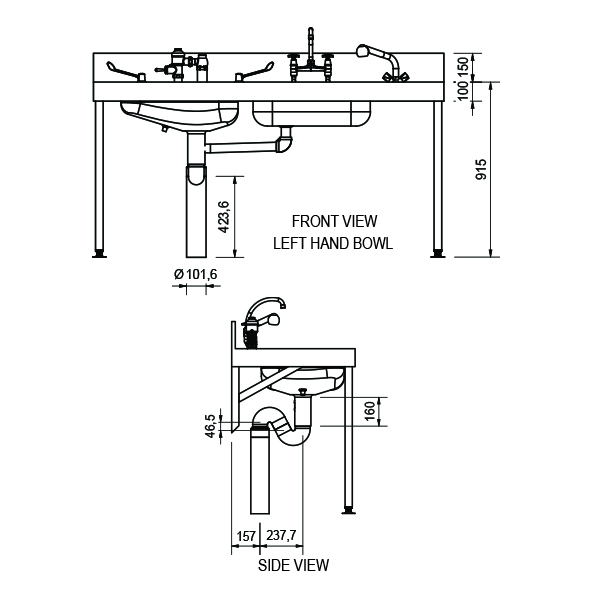

Franke Model EC Combination Bedpan and Wash-Up Sink manufactured from grade 304 (18/10 stainless steel 1.6mm (draining board) and 1,2mm thick (bowls). Unit with a 150mm high integral splash back to the rear and 15mm deep hospital bead 100mm apron to front and sides. The unit is fitted with two pressed seamless bowls with the sluice bowl having an integral flushing rim and a 38mm diameter inlet pipe for the flush valve. The waste outlet on sluice bowl is a 110mm and the rinse bowl size 610x460x230mm deep with a 40mm waste discharging into sluice bowl. The underside sprayed with vermin proof bitumastic sound deadening and has a galvanised mild steel backing sheet. Unit supplied complete with factory fitted Cobra FM 1.00 flush valve, 35mm water supply through 50mm sleeve on unit, CP171/041 pillar mixer with over-arm swivel spout, CP297 pillar mixer with retractable hand spray, 15mm bedpan spray nozzle, 15mm bottle spray nozzle (both nozzles activated by two 15mm quarter turn elbow action valves).

WITH HIGH LEVEL CISTERN OPTION

Franke Model EC Combination Bedpan and Wash-Up Sink manufactured from grade 304 (18/10 stainless steel 1.6mm (draining board) and 1,2mm thick (bowls). Unit with a 150mm high integral splash back to the rear and 15mm deep hospital bead 100mm apron to front and sides. The unit is fitted with two pressed seamless bowls with the sluice bowl having an integral flushing rim and a 38mm diameter inlet pipe for the flush valve. The waste outlet on sluice bowl is a 110mm and the rinse bowl size 610x460x230mm deep with a 40mm waste discharging into sluice bowl. The underside sprayed with vermin proof bitumastic sound deadening and has a galvanised mild steel backing sheet. Unit supplied complete with 11 litres stainless-steel high-level cistern fitted with Supa Flush Valve and pull chain, 41mm diameter stainless steel flush pipe and 41 chrome plated coupling which is reduced on one end to fit the 38mm connection on the unit. Fixing Options for EC & EL Units

FEATURES:

- Grade 304 (18/10) Stainless Steel 1.6mm gauge on drainer and 1,2mm gauge on bowls

- Hygienic and durable

- Pressed seamless bowls designed for the highest level of hygiene and durability

- Unit is pre-plumbed at factory and can be supplied complete with fittings

- 57 Litres pressed rinse bowl

- Sluice bowl with built in Flush rim mechanism with 110mm outlet

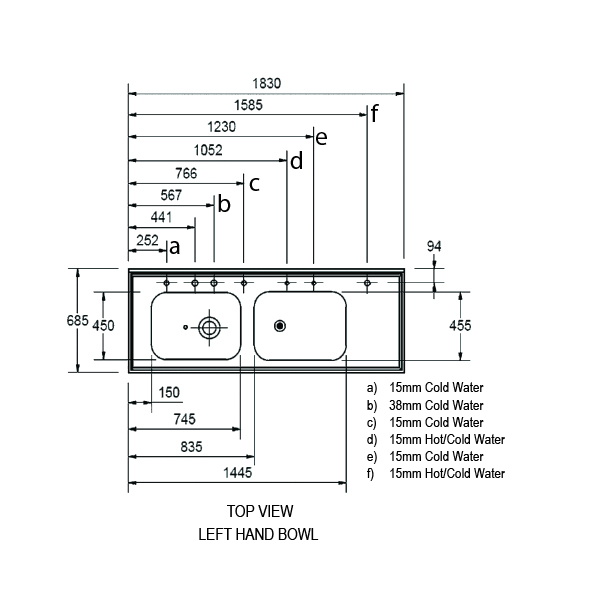

2630001 - EC6 1830x685 mm Left Hand Flush Valve

2630002 - EC6 1830x685 mm Right Hand Flush Valve

2630003 - EC6 1830x685 mm Right-Hand High-Level Cistern

2630004 - EC6 1830x685 mm Left-Hand High-Level Cistern

2630005 - EC7 2135x685 mm Left Hand Flush Valve

2630005-002 - EC7 2135x685 mm Right Hand Flush Valve

2630005-002 - EC7 2135x685 mm Right Hand Flush Valve

2630006-001 - EC7 2135x685 mm Right-Hand High-Level Cistern

2630006 - EC7 2135x685 mm Left-Hand High-Level Cistern

2630007 - EC8 2440x685 mm Left Hand Flush Valve

2630008 - EC8 2440x685 mm Right Hand Flush Valve

2630116 - EC8 2440x685 mm Right-Hand High-Level Cistern

2630117 - EC8 2440x685 mm Left-Hand High-Level Cistern

OPTIONAL ACCESSORIES:

Stainless Steel “P” Trap - On Request

Removable Grid - 2120130
