Washer Disinfector-Dryer for instruments in applications such as: Prisons, Old Age Homes, Mental Clinics, Laboratories and Hospitals.

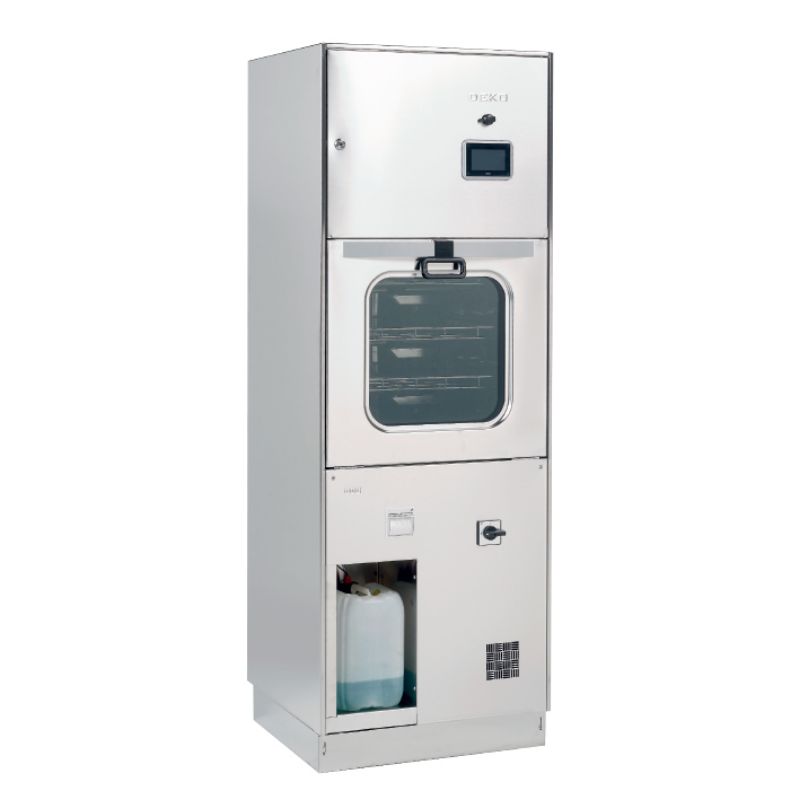

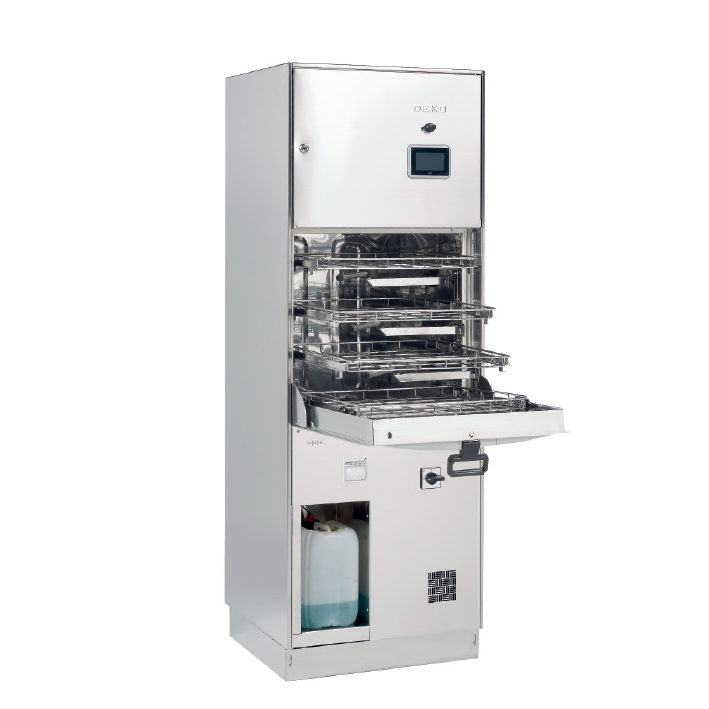

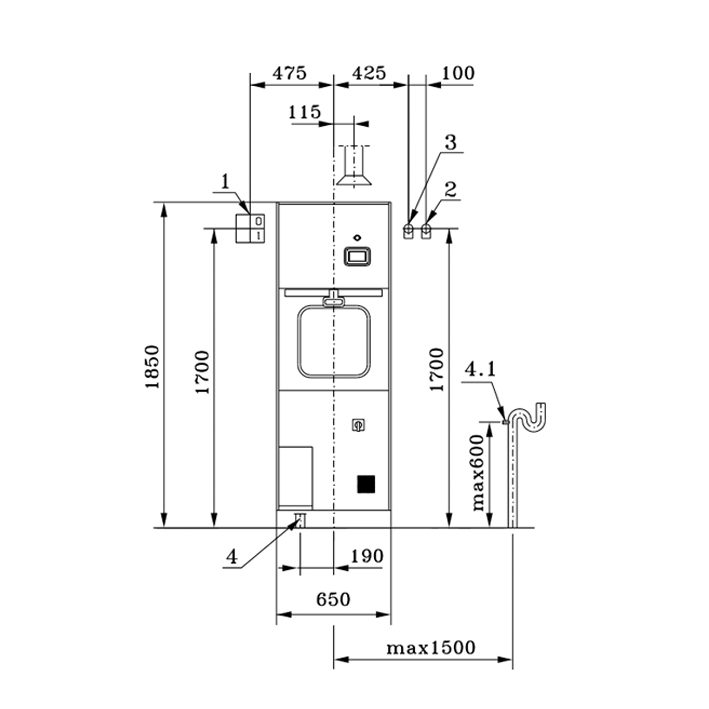

SPECIFICATION: DEKO Model 260 instrument washer disinfector, 650 x 625 x 1850 mm, manufactured from Grade 304 stainless steel with an internal washing chamber no less than 507 x 507 x 485 mm. The unit must be fitted with adjustable feet and be freestanding. The Instrument washer must comply with the ISO 15883-1, 15883-2 specification. The unit must have a built-in circulation pump of no less than 700l per minute to compensate for any drop in incoming water pressure. Interlocking front–opening door with safety lock.
FEATURES:
- Powerful 700L/min circulation water pump
- Framework, panels and wash chamber all made of stainless steel
- Balancing springs and safety locks
- Fully automatic PLC control including back-up batteries for full memory protection
Note: optional Graphic Touchscreen
- Text display and led cycle status indicators mutable cycle complete buzzer
- Multi-level protection code system
- Separate codes for user, maintenance and authorized person fault and warnings information
- Fast dryer with HEPA filter
- Filter quality monitoring and change indication
- Load temperature protection and overtemperature cutouts automatic foam and washing water pressure control
- Typically, between 10 – 60 minutes cycles depending on the load items and the cycle setup
- Dosing of process chemicals by means of peristaltic pumps
- Flow control and optional volume measuring vapour condenser
- Highest independent process verification recording level ‘C’
- Integrated process verification printer (optional)
- Remaining cycle time indication
- Integrated space for process chemical containers (optional key lock door)
- Opaque cold and hot water connection hoses ½“BSP
- Drain outlet valve diameter 50 mm or an outlet pump 20 mm sound and heat insulated
- Back syphon Type A air gap protection mutable process complete buzzer
OPTIONAL ACCESSORIES:
A full range of DEKO Accessories available.
