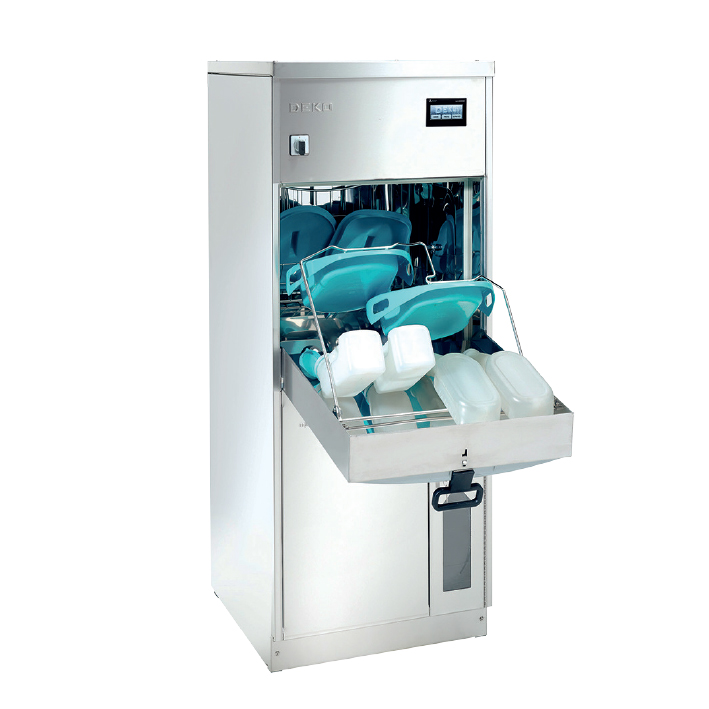

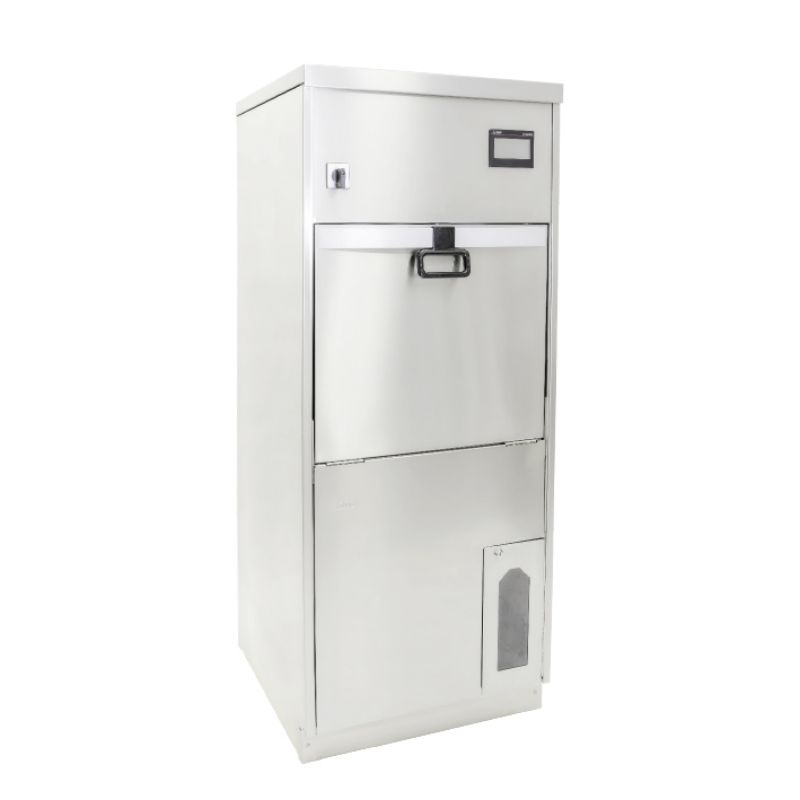

Ward Washer-Disinfector for applications such as: Prisons, Old Age Homes, Mental Clinics and Hospitals.

SPECIFICATION:

DEKO Model 190GT Bedpan washer, 630 x 600 x 1460 mm, manufactured from Grade 304 stainless steel with an internal washing chamber no less than 480 x 360 x 640 mm. The Bedpan washer has the ability, but is not limited to, washing a maximum of 2 bedpans with lids and 4 urine bottles in a single cycle. The unit to be fitted with adjustable feet and to be freestanding with a front-loading door that prevents spillage. The outlet diameter must be 110mm and the unit is to comply with the ISO 15883-1 & 3 specification. The Bedpan washer must have a built-in tank for the recirculation of water with a pump of no less than 600l per minute to compensate for any drop in incoming water pressure. Unit to be manufactured with no less than 3 rotating and 7 fixed wash jets.

FEATURES:

- 3 rotating + 7 fixed wash jets

- automatic detergent dosage

- indication for insufficient volume of detergent to complete cycle

- integrated detergent container housing

- load temperature protection and over temperature cut-outs

- automatic foam and washing water pressure control system

- opaque cold and hot water connection hoses ½“BSP

- drain outlet diameter 90–100 mm

- sound and heat insulated

- vapour condenser

- height adjustable feet ±10 mm

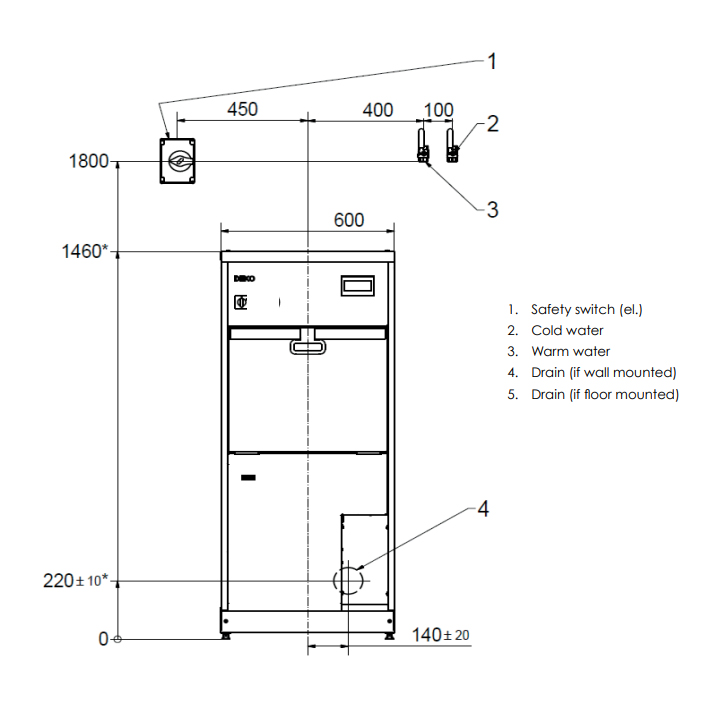

- overall dim. W600 x D630x H1460 ±10 mm

- usable wash chamber dim. W480 x D360 x H640 mm

- powerful circulation water pump, output 600 L/min

- cycle phase indication

- display indicates cycle completion

- fault indication and coded information

- access to regulation of critical process parameter values with authorized person entry code only

- component test mode for preventive maintenance

OPTIONAL ACCESSORIES:

A full range of DEKO Accessories available.
